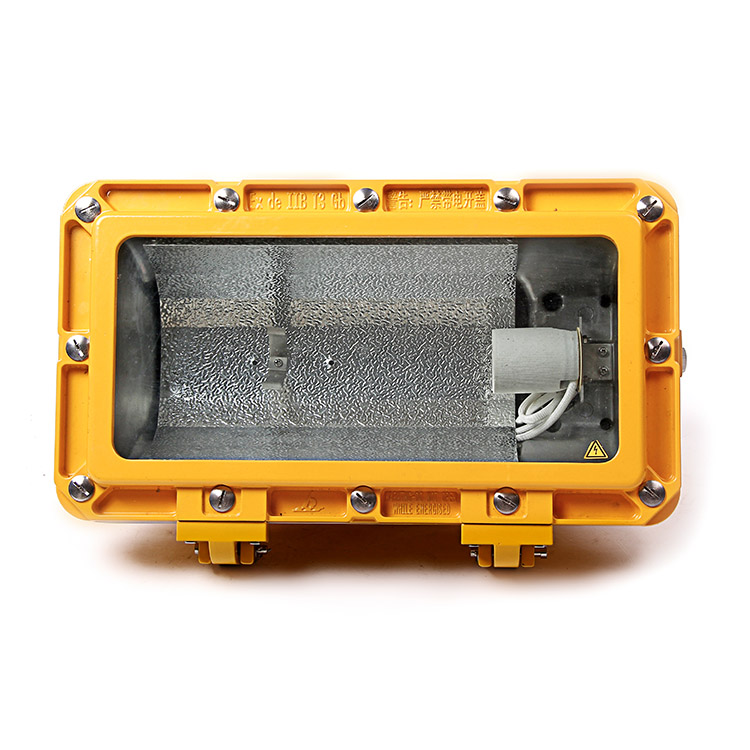

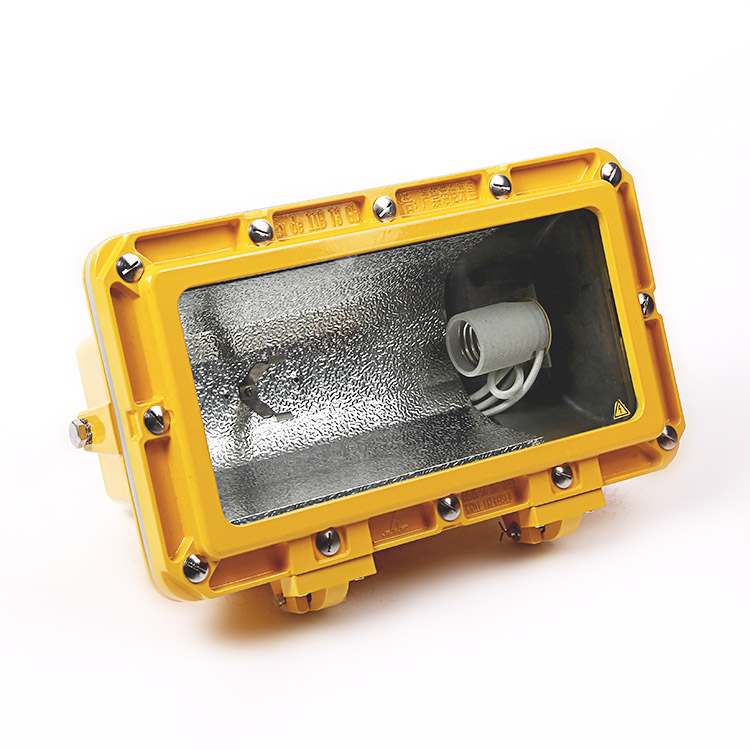

Marine Explosion Proof Spot Light – CFT2
General Details
Product certification
- Passed the examination of National Explosion-proof Safety Supervisor and Inspect! on Station for Luminaire.
- Approved by CCS (China Classification Society).
Product characteristic
- The shell adopts good quality cast aluminum, good quality toughened glass lampshade, The light body can adjust up and down 45 degrees.
- The lamp body adopts seal structure, has high waterproof performance and anticorrosive performance.
- Equipped ballast inside, no need to equipped ballast box (except the voltage is 110V/60H)
- Conform to GBADE ENTRY NORMS FOR STEEL SHIPS and National standardGB3836-2000, GB12045, En50014, En50018, En60079.
Specifications
| Model | Explosion- proof mark |
Voltage | Power | In luminous flux |
illuminant | lamp holder |
Cable outside diameter |
protection class |
Weight |
| CFT2 | Exde II BT3 | 220V/50HZ
220V/60HZ 110V/60HZ |
250W | 26000 | hight-pressure sodium lamp | E40 | IP56 | 24.5kg | |
| 20500 | metal halide lamp | ||||||||
| Exde II BT2 | 400W | 47000 | hight-pressure sodium lamp | ||||||
| 36000 | metal halide lamp |
