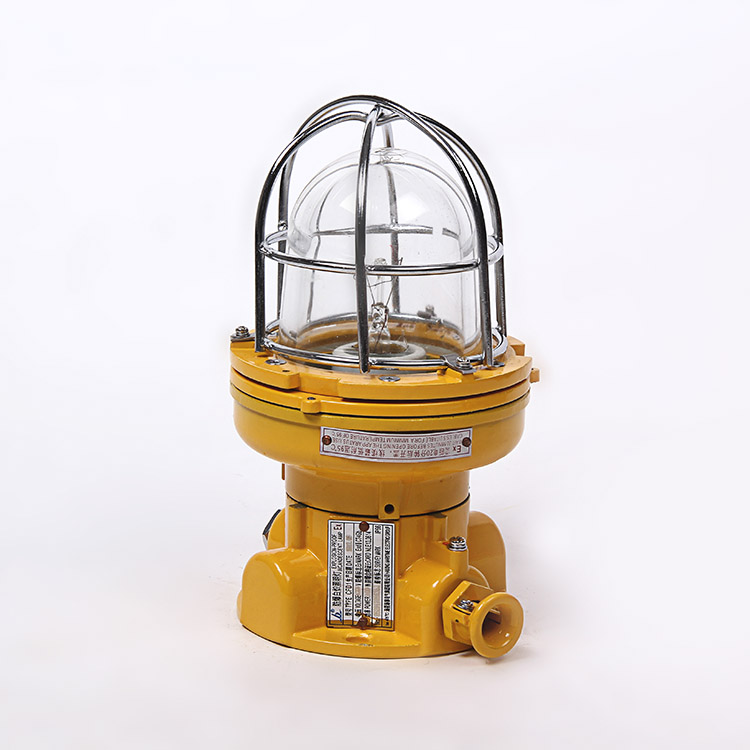

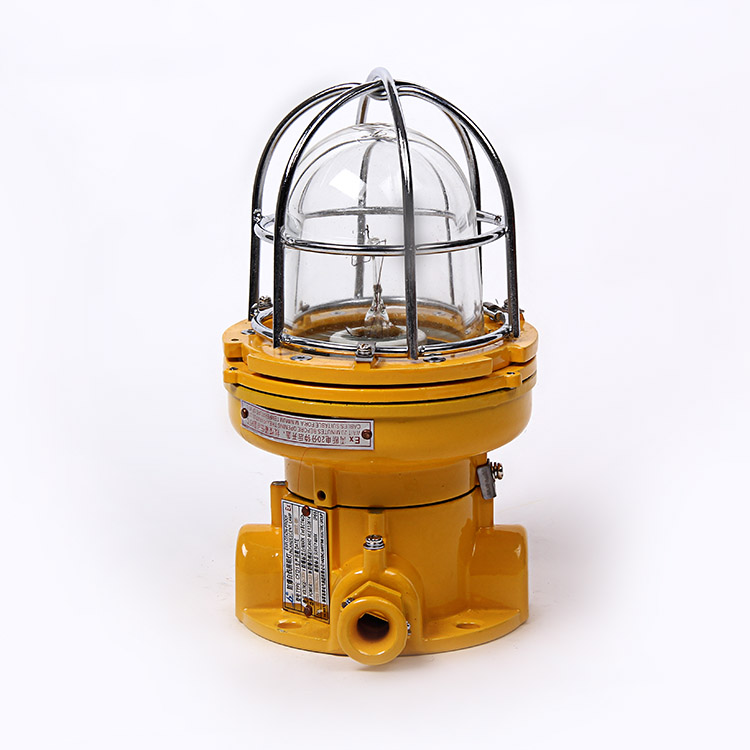

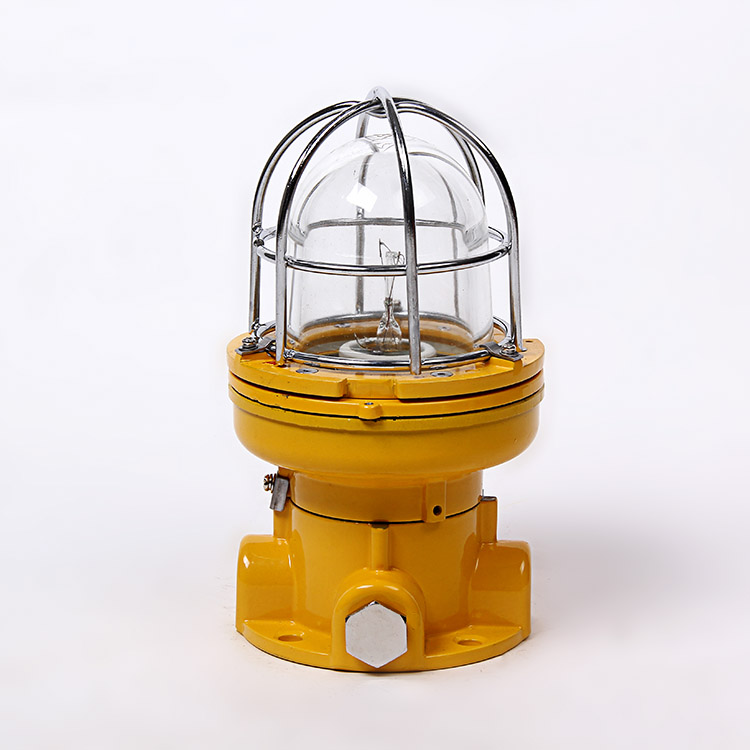

Marine Explosion-Proof Pendant Light – CFD1
General Details
Product characteristic
- The shell adopts good quality cast aluminum, good quality toughened glass lampshade, with a guard.
- The lamp body adopts seal structure, has high waterproof performance and anticorrosive performance.
- Conform to GRADE ENTRY NORMS FOR STEEL SHIPS National standard GB3836-2000, GB12045.
- Fitting to ambient temperature:-20° C-+45° C.
Specifications
| Model | Explosion-proof mark | Voltage | Power | Lamp holder | illuminant | Cable outside diameter | protection class | Weight |
| CFD1 | Exd II CT4 | 220V/24V | C100W | E27 | Incandescent lamp | Φ11-Φ13 | IP66 | 2.9kg |
