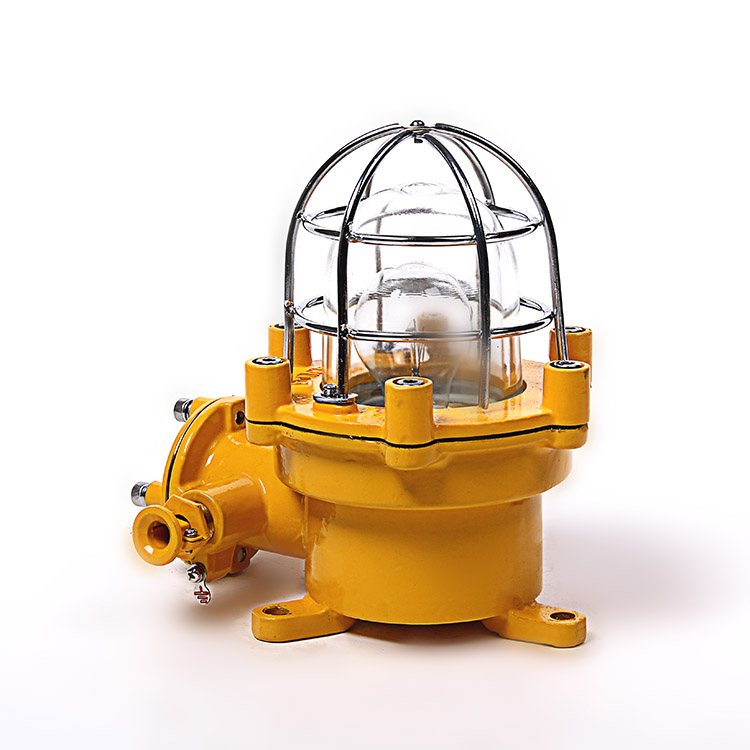

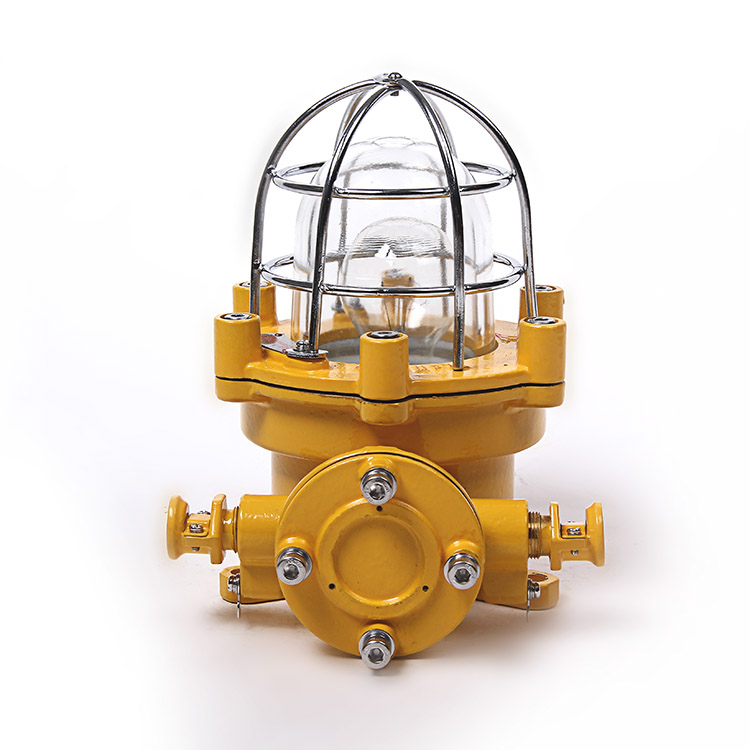

Marine Explosion-Proof Light – CFD2/CFD3
General Details
The scope
It can be used safely and reliably in the place with explosive air mixture, with explosive matters IIA, IIB, The temperature group is
T1-T4 in cabin and outdoor place.
Products characteristic
- The shell is made of a good quality brass foundry, toughened glass lampshade, copper material net shield.
- The gland has two kinds, one is tube screw type screw is G3/4; Another one is bugle-type.
Adopt standard
Conform to National standard GB12045<The technical condition of Marine explosion-proof light〉.
Specifications
| Type | Explosion- proof Mark |
Voltage | Power | illuminant | Lamp Holder |
Cable Outside Diameter |
Protection
Class |
Material | Weight |
| CFD2a | Exd II BT3 | 220V | 200W | Incandescent lamp | E27 | Φ11-Φ14 | IP55 | Brass | 19kg |
| CFD2b | Exd II BT3 | 220 | 125W | Self-ballast High- pressure Mercury Lamp |
E27 | Φ11-Φ14 | IP55 | Brass | 19kg |
| CFD3 | Exd II BT4 | 24V | 25W | Incandescent lamp | E27 | Φ11-Φ14 | IP66 | Brass | 13.5kg |
| 110V | 40W/60W | ||||||||
| 220V | 40W/60W/100W |
