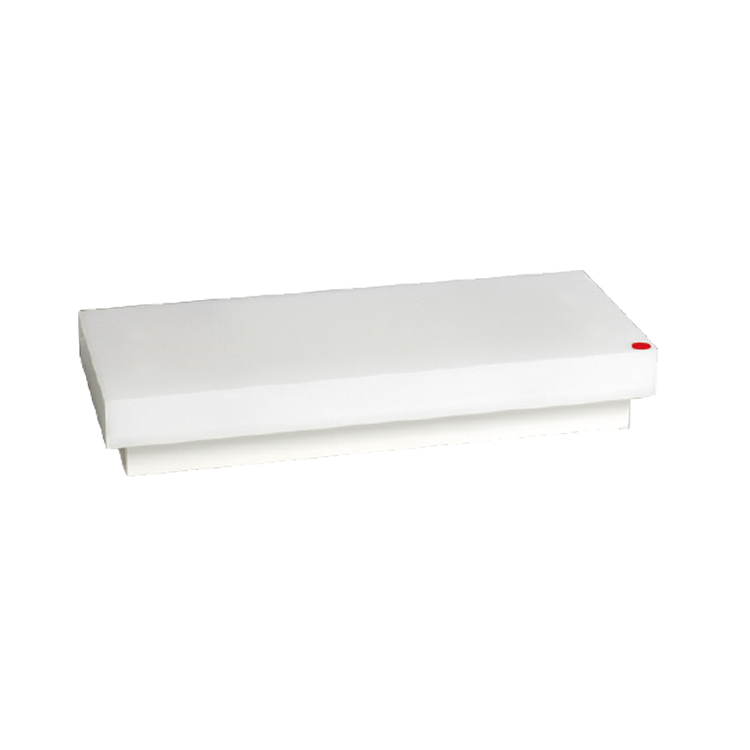

Marine Fluorescent Ceiling Light – JPY20

General Details
The scope

Applied to dry cabins, such as the reside nee, restroom, dining room, cab, operator of the sailors and passengers

The scope of application
  1. The installation way of the light is recessed-type, compact structure and delicacy appearance.
  2. The lampshade is made of PC, not discolor, fine toughness, softness ray.
  3. Equipped compensating capacitance inside the lamp holder, also has the good effect of start, spin-type of the lamp holder has fine contact function.
  4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lamp has RED mark.
specification
type power voltage Power factor Lamp Holder Protection class Weight remark
JPY20-2 2*20W

110V/60Hz
220V/50HZ
220V/60HZ



>0.85 G13

IP22



5.2kg
JPY20-2E 5.2kg with emergency
JPY40-2 2*40W >0.85 G13 11.5kg
JPY40-2E 11.5kg with emergency
Techical Info
Comments
One Comment
  1. What is lumen value of this lighting fixture?
